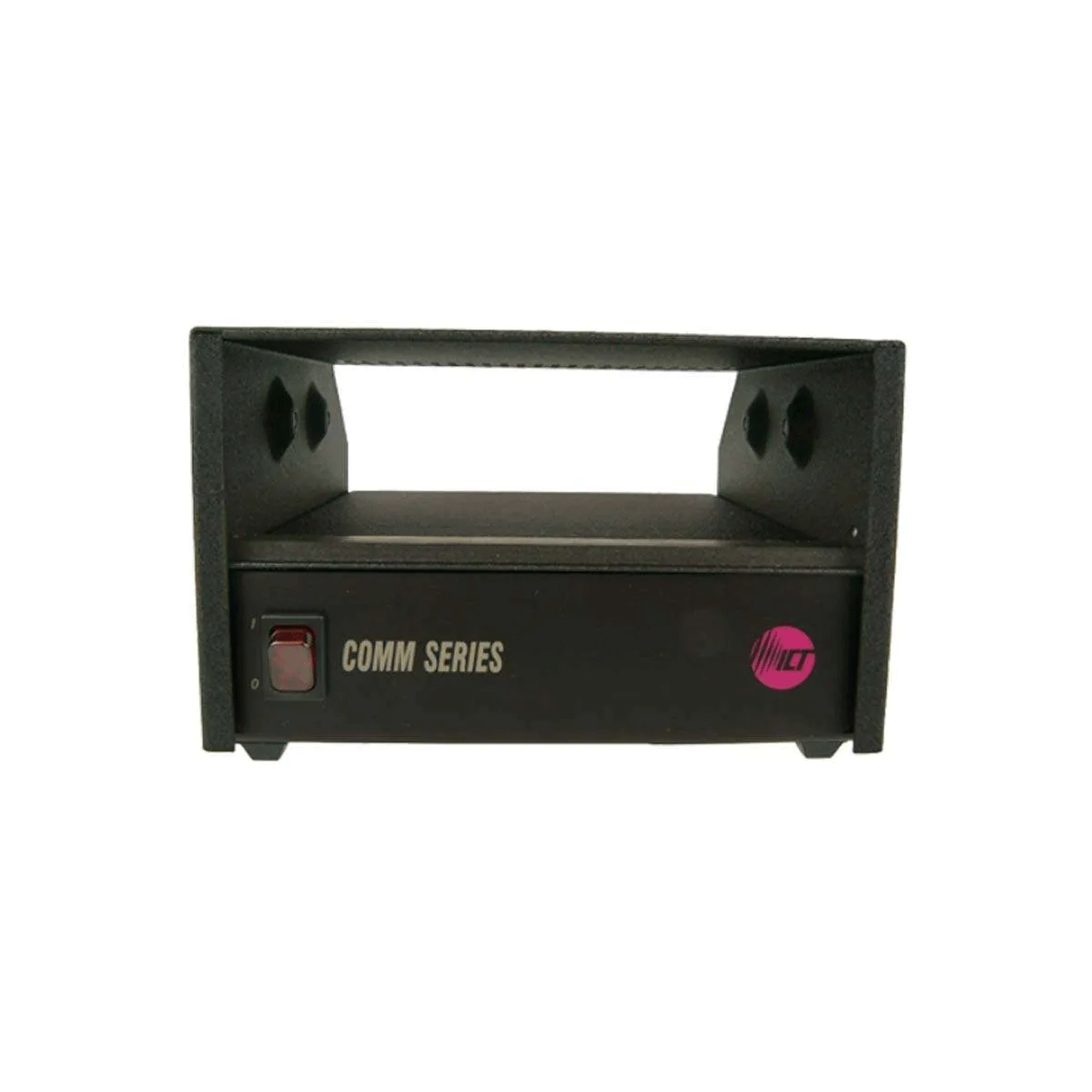

ICOM CS120-12AG/ICO10 120V / 20 Amp Power Supply with Icom Cover

The CS120-12AG/ICO10 incorporates the ICT12012-12AG switching power supply factory assembled with the BASE-ICO10 base station cover. The CS120-12AG/ICO10 Complete Station provides a sleek, compact mobile radio base station housing, individually customized to the Icom IC-A110 mobile radios. The ICT12012-12AG switching power supply delivers continuous trouble-free operation and incorporate extra filtering, providing a virtually noise-free environment. Features: - Attractive Finish - Lightweight - Sleek Profile - Easy To Install Product specifications: Input Voltage Range: 90 - 130 VAC Input Frequency Range: 50 - 60 Hz Output Voltage: 13.8 VDC +/- 150 mV Output Current (Continuous): 12.0 Amps Output Current (Peak): 12.0 Amps Current Limiting: 12.5 Amps Line Regulation: 0.20% Load Regulation: 0.80% Output Ripple (Max): 25 mV RMS Efficiency (Min): 85% Fuse: 4 Amp Operating Temperature: -50F to 125F, -46C to 52C Size (L x W x H): 7.62" x 6.45" x 3.89" Weight: 4.9 lbs.

Compatible with ICOM transceivers:

IC-A110
