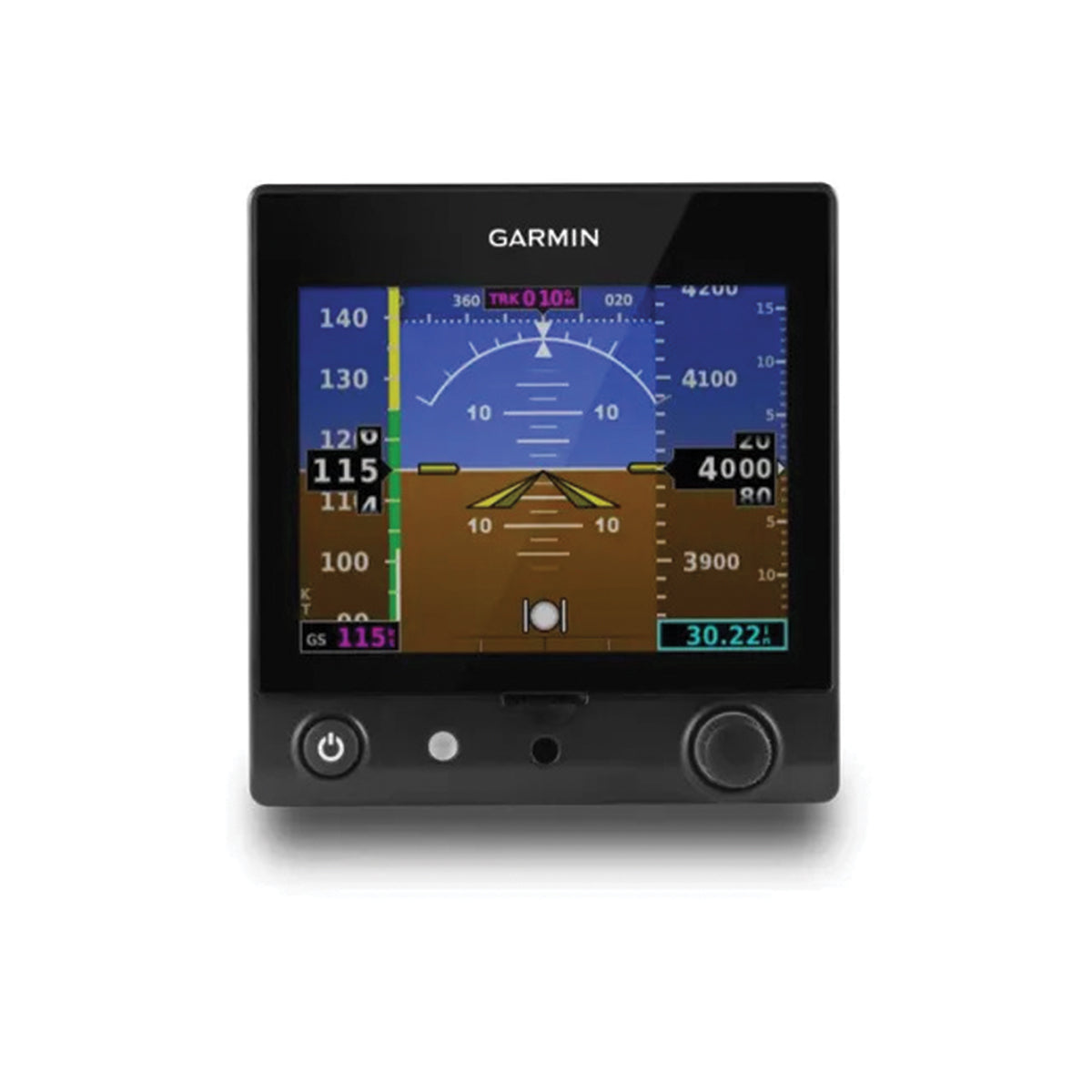

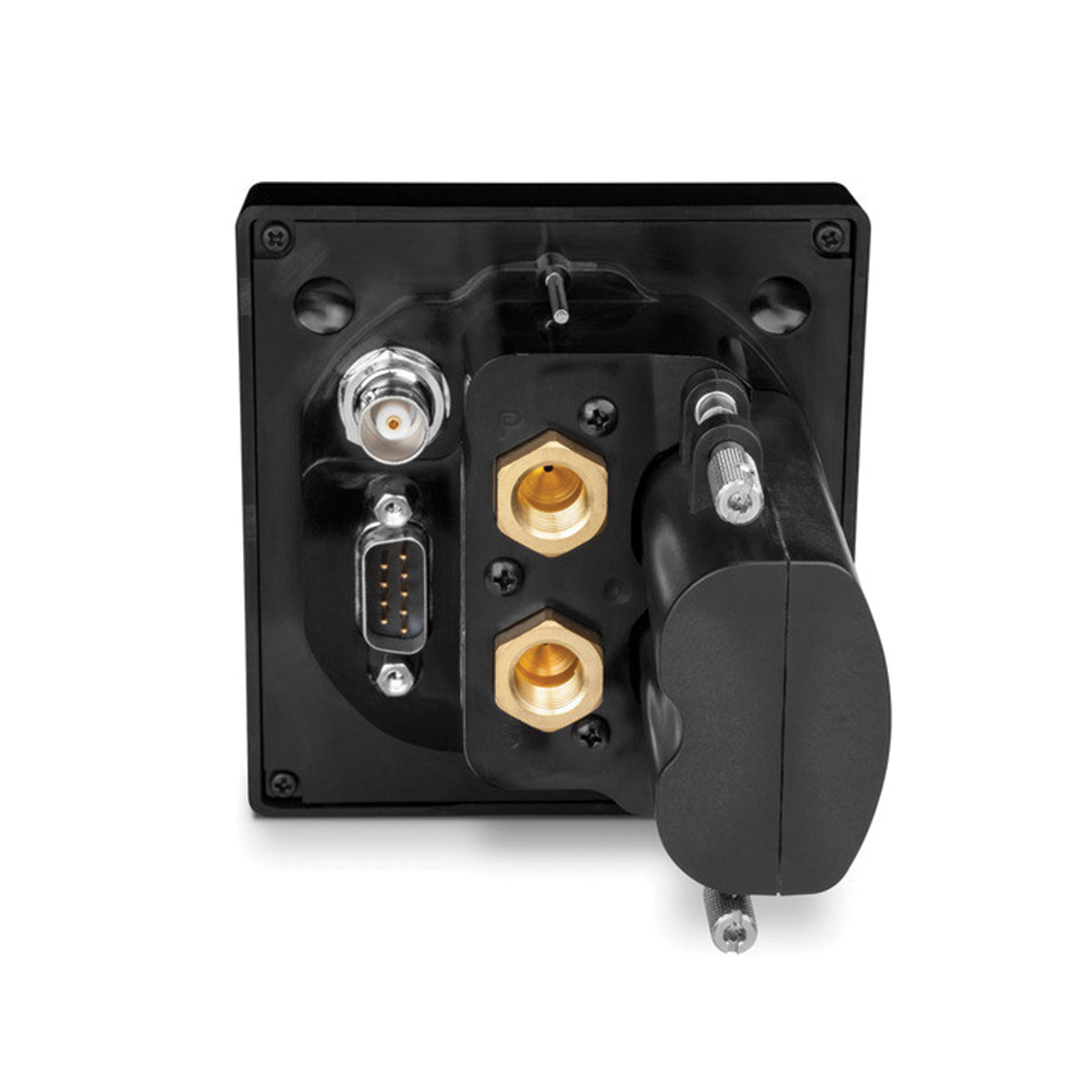

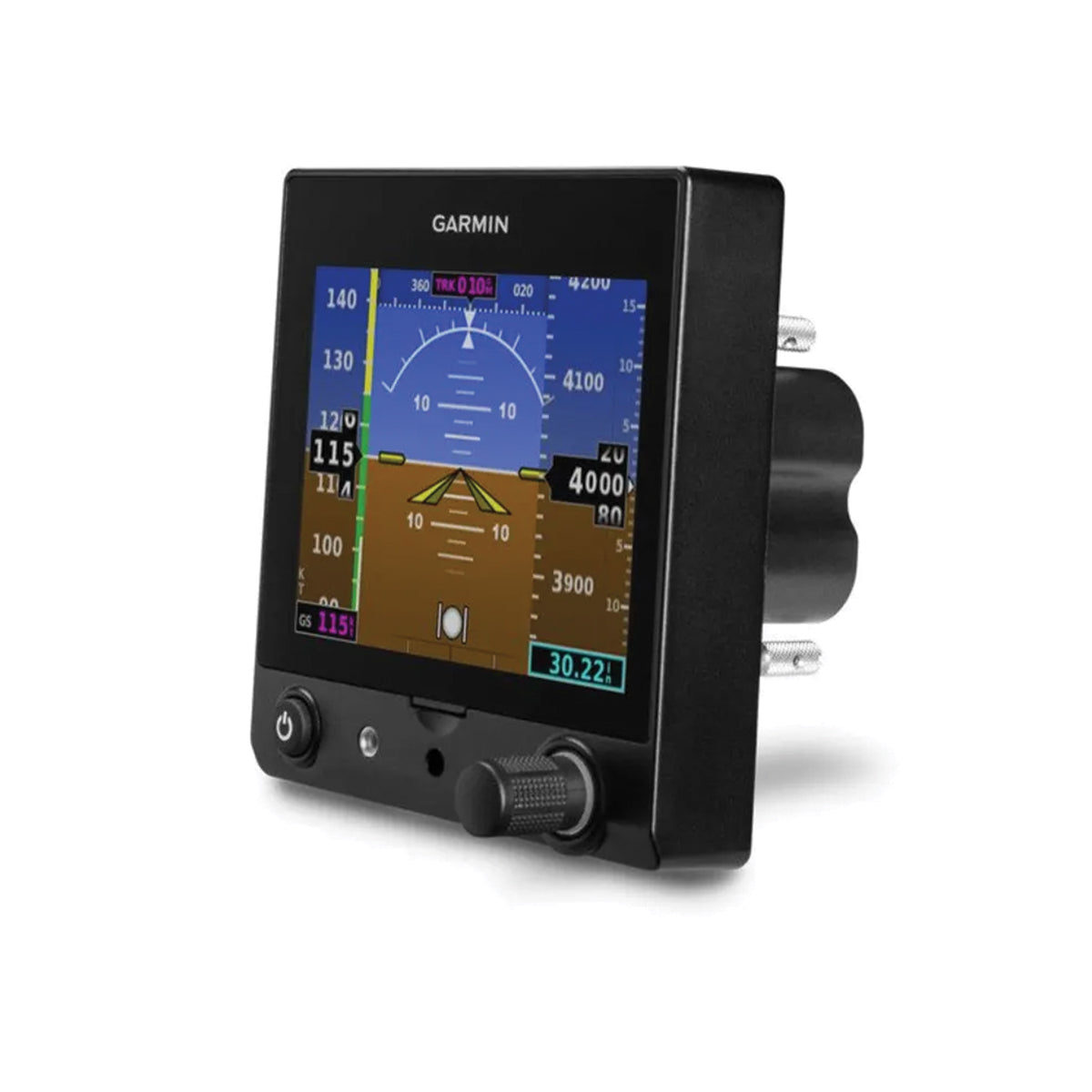

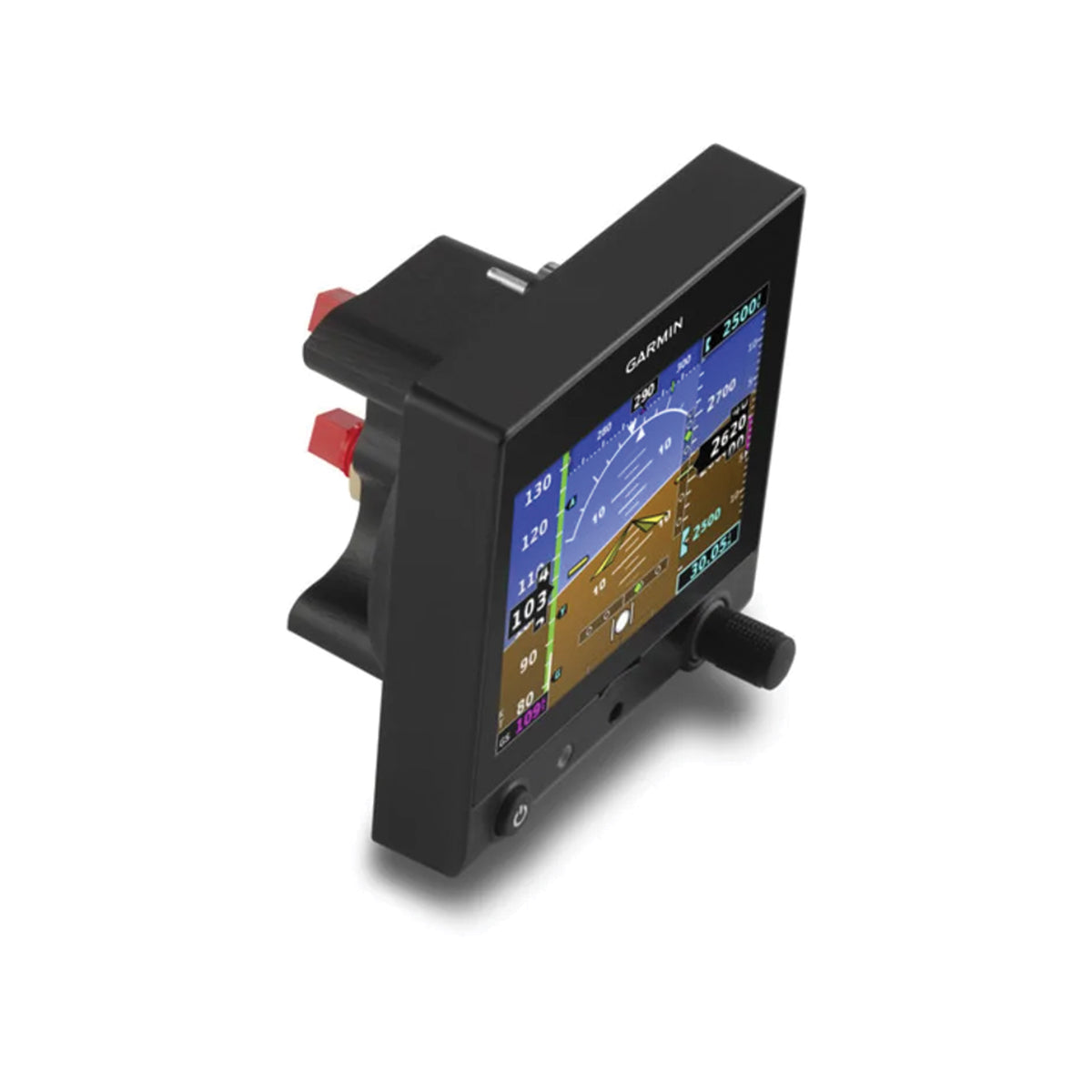

Garmin G5 Electronic Attitude Indicator For Certificated Aircraft

SKU: K10-00280-01

$3,095.00

Shipping calculated at checkout.

The Garmin G5 brings modern glass cockpit technology to certificated aircraft in a compact, easy-to-install format. Designed as a replacement for traditional attitude indicators and directional gyros. The G5 delivers reliable solid-state performance with a bright, sunlight-readable display that fits directly into a standard 3-1/8” instrument cutout.

Key Features

Replaces traditional attitude and directional gyro instruments
Configurable as attitude indicator, DG/HI, HSI, or turn coordinator
Bright 3.5” sunlight-readable color LCD display
Certified for over 560 aircraft makes and models
Built-in GPS receiver for groundspeed and track information
Includes rechargeable backup battery with up to 4 hours of operation
Dual G5 installations provide redundancy and reversionary display capability
Compatible with select Garmin autopilot and navigation systems

In order to complete the Dual G5 setup, please order one attitude indicator -and- either the DG/HSI -or- the HSI with GPS Nav Interface if your panel has a compatible GPS.

This item is available for special order only and may have longer than normal lead times. Special order items are not returnable.

Model: Attitude Indicator

Attitude Indicator DG/HSI HSI (with GPS Nav Interface)

Free Shipping over $120 *some exclusions apply
Free Returns Within 30 days

*Note for Pickup in Store Options: Order Name, Billing Name, Pickup Name, and Government ID MUST MATCH

About

Approved for installation in more than 560 aircraft makes and models, the G5 provides pilots with enhanced situational awareness by consolidating essential flight information into a clean, easy-to-read interface. It can be configured as an attitude indicator, DG/HI, HSI, or turn coordinator, making it a flexible upgrade path for both VFR and IFR flying.

Built-in GPS, dual-display compatibility, and an included 4-hour backup battery add redundancy and confidence in flight, while compatibility with Garmin avionics and autopilot systems allows for deeper cockpit integration and expanded capabilities.

Product Details

Performance & Specifications

Display Size: 3.5” diagonal color LCD
Display Resolution: 320 x 240 pixels
Power Requirements: 14 or 28 VDC aircraft power
Weight: 13.3 oz
Backup Battery: Rechargeable lithium-ion
Battery Life: Up to 4 hours
Altitude Range: -1,400 to +30,000 feet
Maximum Indicated Airspeed: 300 knots
Vertical Speed Range: ±20,000 ft/min
Pitch/Roll Range: ±360°
